980nm 10W CMOUNT LD

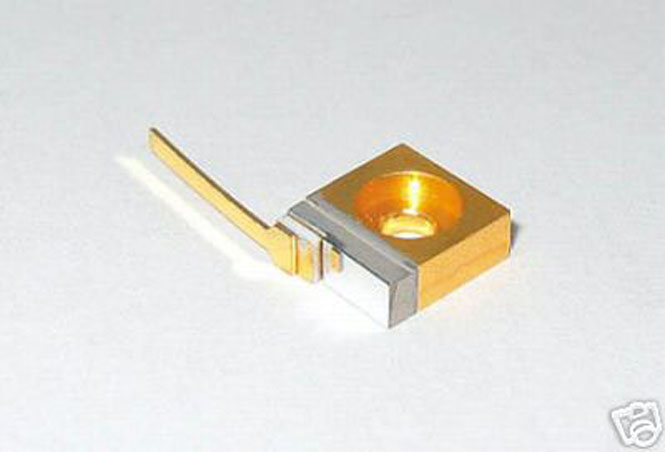

 Product name : 980nm 10W CMOUNT LD
No. :
 Enlarge Image             Back
order


DA-LD-980-10W-CMOUNT
    Min    Type    Max
 Center Wavelength@25℃    +/-3nm   980nm    +/-10nm
 Spectral Width (FWHM)    ----  3nm    ----
 Output Power    ----  10W    ----
 Emitter Area    ----   200x1μm   ----
 Beam Divergence (FWHM)    ----    32°┴ x 9°//     40°┴ x 12°//
 Temperature Coefficient of Wavelength    ----   0.3nm / °C    ----
 Slope Efficiency    ----   0.9W/A    ----
 Threshold Current (Typ.)    ----  1A    ----
 Operating Current (Typ.)    ----  12A    ----
 Operating Voltage    ----  1.9V    ----
 Package Style    CMOUNT
