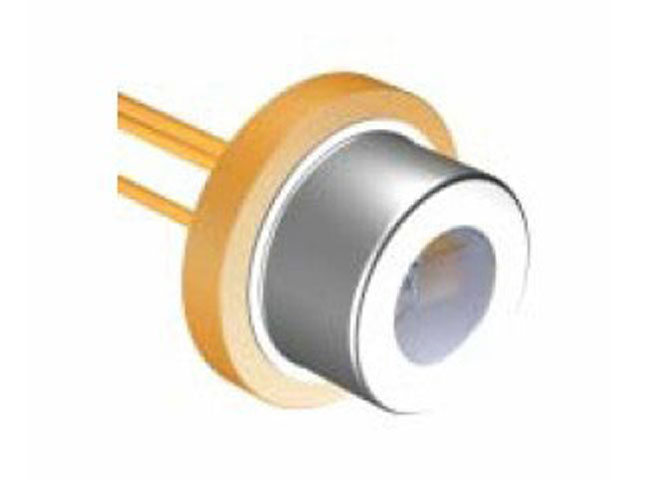

980nm 1W TO5 Laser Diodes
 Product name : 980nm 1W TO5 Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-980-1W-TO5
    Min    Type    Max
 Center Wavelength@25℃    970nm    980nm    990nm
 Spectral Width (FWHM)    ----   3.0nm    ----
 Output Power    ----  1W  ----
Recommend Operating Temperature 25°C
 Beam Divergence (FWHM)    ----   48┴ x 10°//    ----
 Temperature Coefficient of Wavelength    ----   0.3nm / °C    ----
 Slope Efficiency    ----   0.80mW/mA    ----
 Threshold Current (Typ.)    ----   350mA    ----
 Operating Current (Typ.)    ----  1.8A    ----
 Operating Voltage    ----   2.0V    ----
 Package Style    TO5
