940nm 20W 40W 60W 100W 200W Laser Diodes Bar CSMOUNT

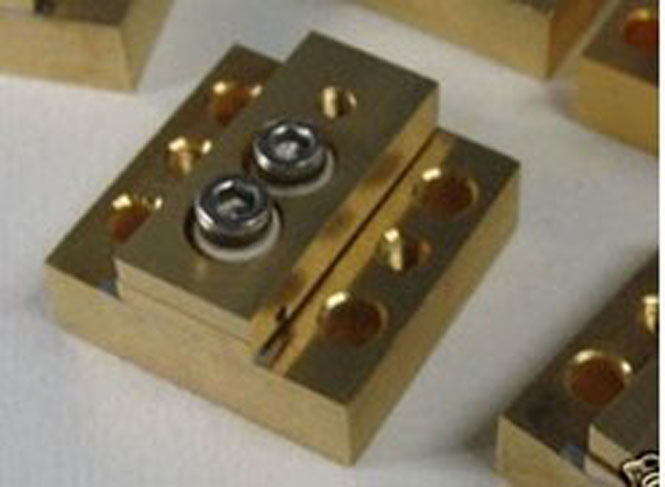

Product name : 940nm 20W 40W 60W 100W 200W Laser Diodes Bar CSMOUNT
No. :
 Enlarge Image             Back
order

 Product overview / Diode Lasers / Conductively Cooled Diode Bar



Model No.

CS20

CS40

CS60

CS100Q

CS200Q

Output Power

20W

40W

60W

100W

200W

Wavelength

 808 /940 / 976 nm

Operation Mode

CW

QCW

Duty Circle

CW

≤5%

Pulse Width

CW

≤300μs

Typical Current

25A

42A

65A

110A

210A

Applications:

·         Solid-State Laser Pumping (DPSS Laser)

·         Diode Laser Fiber Coupling

·         Medical Therapeudics

·         Research & Experiments

·         Infrared Illumination

·         Other Industry Applications
