980nm 5W CMOUNT Laser Diodes

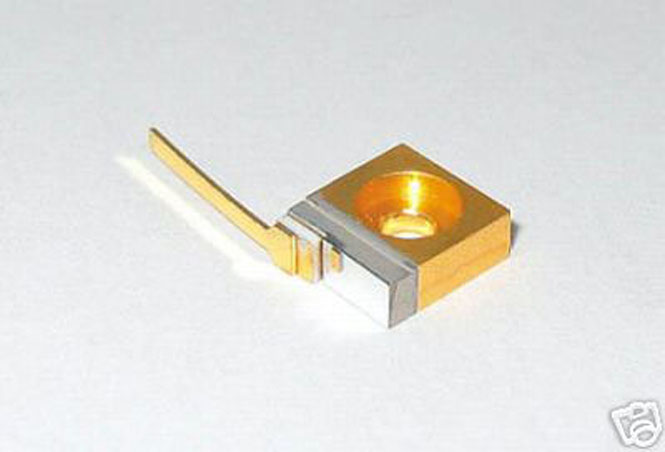

 Product name : 980nm 5W CMOUNT Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-980-5W-CMOUNT
    Min    Type    Max
 Center Wavelength@25℃    +/-3nm   980nm    +/-10nm
 Spectral Width (FWHM)    ----   2.5nm    ----
 Output Power    ----  5W    ----
 Emitter Area    ----   200x1μm   ----
 Beam Divergence (FWHM)    ----    36°┴ x 10°//    ----
 Temperature Coefficient of Wavelength    ----   0.3nm / °C    ----
 Slope Efficiency    ----   1.0W/A    ----
 Threshold Current (Typ.)    ----  450mA    ----
 Operating Current (Typ.)    ----  5.5A    ----
 Operating Voltage    ----  1.9V    ----
 Package Style    CMOUNT
