Products
980nm 200mw TO18 Laser Diodes

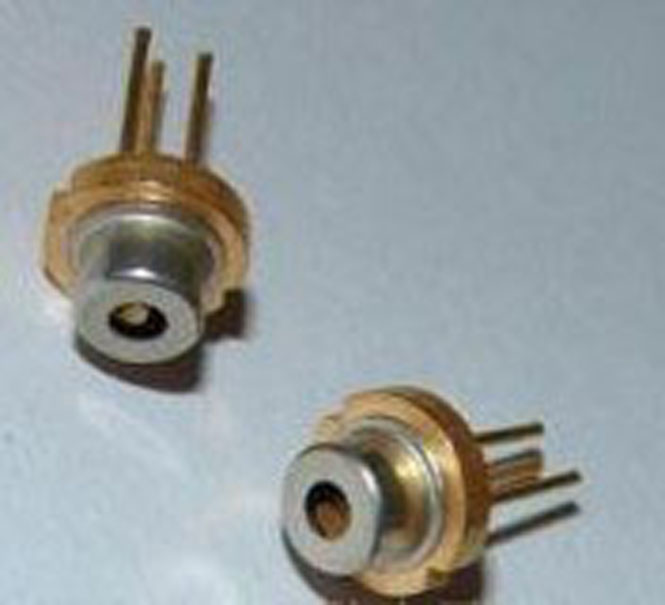

 Product name : 980nm 200mw TO18 Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-980-200mw-TO18
    Min    Type    Max
 Center Wavelength@25℃    970nm    980nm    990nm
 Spectral Width (FWHM)    ----   3.0nm    ----
 Output Power    ----   200mw    ----
 Emitter   ----  Single  ----
 Beam Divergence (FWHM)    ----   35°┴ x 12°//    ----
 Temperature Coefficient of Wavelength    ----   0.3nm / °C    ----
 Slope Efficiency    ----   0.85mW/mA    ----
 Threshold Current (Typ.)    ----   ----   100mA
 Operating Current (Typ.)    ----   ----   500mA
 Operating Voltage    ----   ----   2.4V
 Package Style    TO18
