Products
940nm 5W CMOUNT Laser Diodes

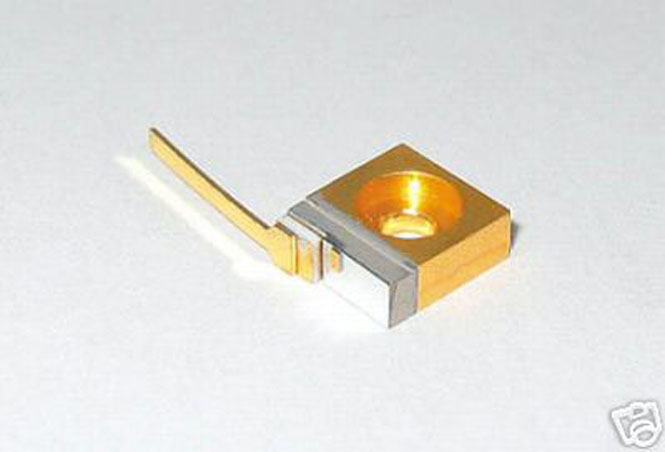

 Product name : 940nm 5W CMOUNT Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-940-5W-CMOUNT
    Min    Type    Max
 Center Wavelength@25℃   +/-3nm 940nm   +/-10nm
 Spectral Width (FWHM)    ----   2.5nm    ----
 Output Power    ----  5W   ----
 Emitter  Area   200x1um
 Beam Divergence (FWHM)    ----   36°┴ x 10°//  40°┴ x 12°//
Temperature Coefficient of Wavelength  ----   0.28nm/  °C  ----
 Slope Efficiency    ----  1.0W/A    ----
 Threshold Current (Typ.)    ----   ----  1A
 Operating Current (Typ.)    ----   ----  5.2A
 Operating Voltage    ----   ----  2.0V
 Package Style   CMOUNT
