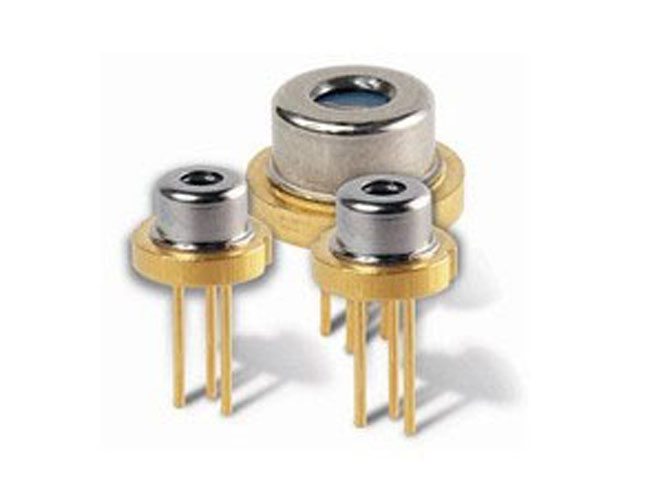

880nm 100mw TO18 Laser Diodes
 Product name : 880nm 100mw TO18 Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-880-100mW-TO18
    Min    Type    Max
 Center Wavelength@25℃    870nm    880nm    890nm
 Spectral Width (FWHM)    ----   2.0nm    ----
 Output Power    ----   100mw    ----

 Beam Divergence (FWHM)   22°┴ x 4°//    32°┴ x 10°//    42°┴ x 16°//
 Monitor Current    ----   0.13mA    ----
 Slope Efficiency    0.7mW/mA    0.9mW/mA    ----
 Threshold Current (Typ.)    ----   110mA   140mA
 Operating Current (Typ.)    ----  220mA  280mA
 Operating Voltage    1.6V    1.8V    2.2V
 Package Style    TO18
