880nm 3W CMOUNT Laser Diodes

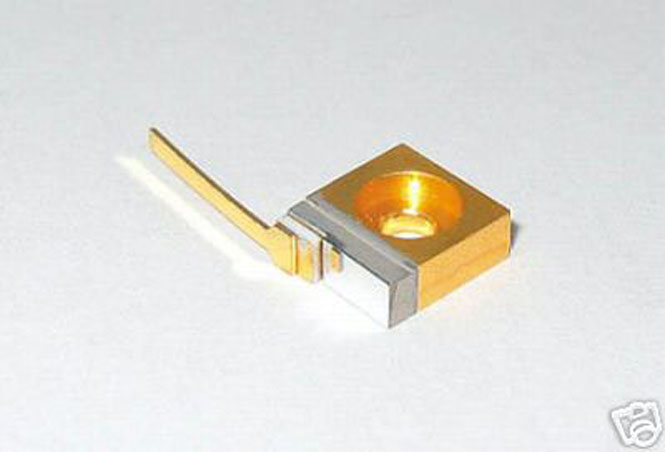

 Product name : 880nm 3W CMOUNT Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-880-3W-CMOUNT
    Min    Type    Max
 Center Wavelength@25℃    870nm    880nm    890nm
 Spectral Width (FWHM)    ----   2.0nm    ----
 Output Power    ----  3W   ----
 Emitter  Area   150x1um
 Beam Divergence (FWHM)    ----   70°┴ x 10°//   ----
Temperature Coefficient of Wavelength  ----   0.28nm/  °C  ----
 Slope Efficiency   0.9W/A   1.1W/A   1.2W/A
 Threshold Current (Typ.)    ----   0.7A    ----
 Operating Current (Typ.)    ----  3A  3.4mA
 Operating Voltage    ----  2V    ----
 Package Style   CMOUNT
