850nm 1W TO18 Laser Diodes

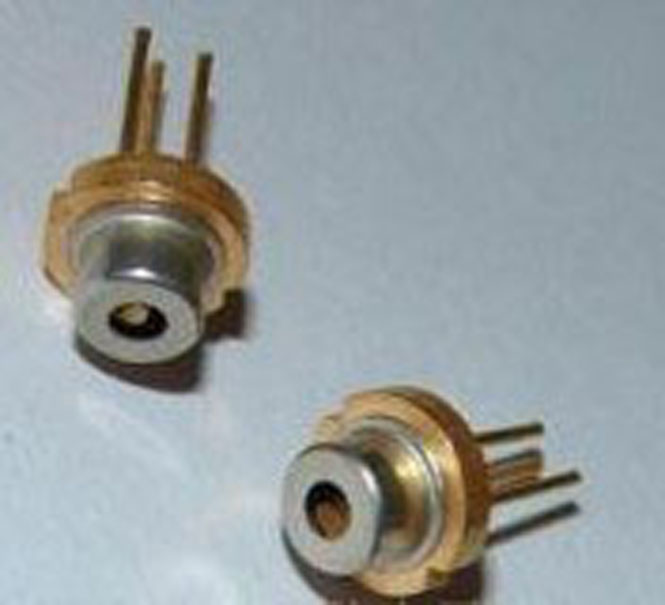

 Product name : 850nm 1W TO18 Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-850-1W-TO18
    Min    Type    Max
 Center Wavelength@25℃    +/-3nm    850nm    +/-10nm
 Spectral Width (FWHM)    ----   3.0nm    5.0nm
 Output Power    ----   1W    ----
 Emitter Area    ----   100x1μm    ----
 Beam Divergence (FWHM)    ----   36°┴ x 10°//    40°┴ x 12°//
 Temperature Coefficient of Wavelength    ----   0.3nm / °C    ----
 Slope Efficiency    ----   1.0W/A    ----
 Threshold Current (Typ.)    ----   ----   0.3A
 Operating Current (Typ.)    ----   ----   1.4A
 Operating Voltage    ----   ----   2.2V
 Package Style   5.6mm
