808nm 8W CMOUNT Laser Diodes

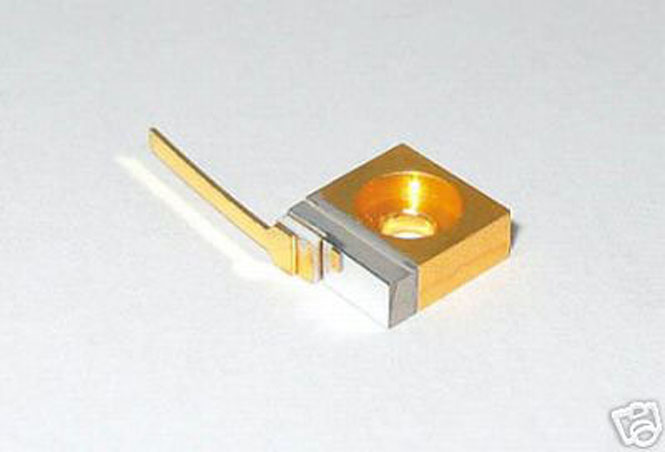

Product name : 808nm 8W CMOUNT Laser Diodes
No. :
 Enlarge Image             Back
order

DA-LD-808-8W-CMOUNT







  Min

 Type

 Center Wavelength@25

 +/-3nm

 808nm

 Spectral Width (FWHM)

 ----

3nm

 Output Power

 ----

8W

 Emitter Area

 ----

 300x1μm

 Beam Divergence (FWHM)

 ----

 32°┴ x 10°//

 Temperature Coefficient of Wavelength

 ----

 0.3nm / °C

 Slope Efficiency

 ----

 1.2W/A

 Threshold Current (Typ.)

 ----

1A

 Operating Current (Typ.)

 ----

8.5A

 Operating Voltage

 ----

 2V

 Package Style

 CMOUNT
