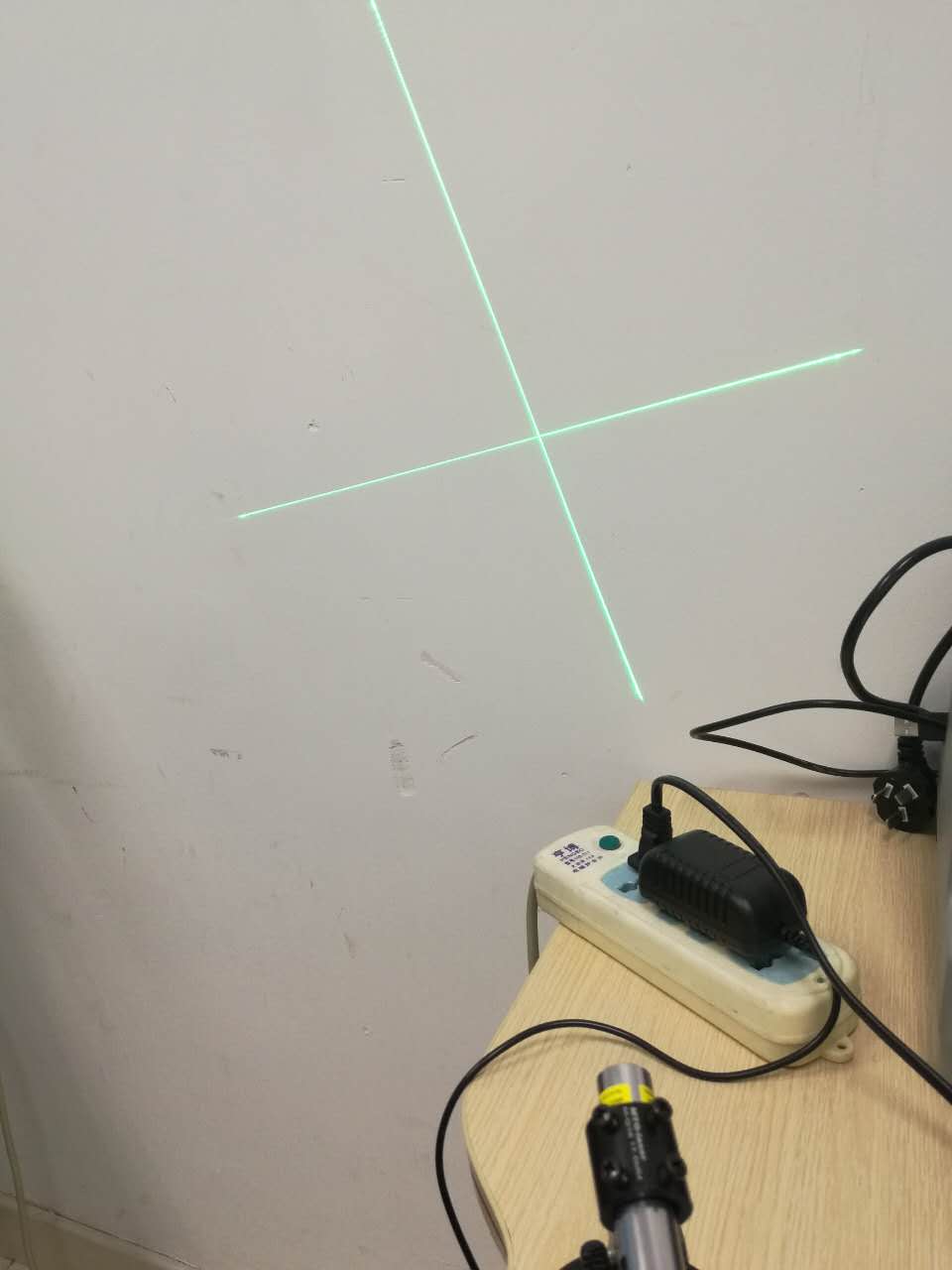

DM532C5 Green Cross line laser module：

Characteriscics：

High-quality laser diode,optical glass lens, driver circuit and housing

Better line quality

High reliability, high stability, long life,low price

Applications:

Machine vision
Industrial inspection

Industrial marking devices

3D contour mapping
Positioning & visualization
Biomedical
High-end alignment

Laser targeting devices and so on..

Specifications：
Wavelength：520-532nm

Output power：1-100mW

Laser class：II，IIIa，IIIb
Beam divergence：0.1mrad ~ 0.6mrad

Line thickness: Less than 2mm at 3m

Fan angle：5°、10°、30°、45°、60°、75°、90°

Laser line accuracy：<30”(at 5m)
Operating Voltage：DC3V-5V,7V

Operating Temperature：10℃～35℃

Storage Temperature：-30℃～80℃

Dimensions：Φ12mm ×45mm, Φ16mm ×60mm,33*33*55mm

MTTF：8000 hours

Warranty：6 months
