Products

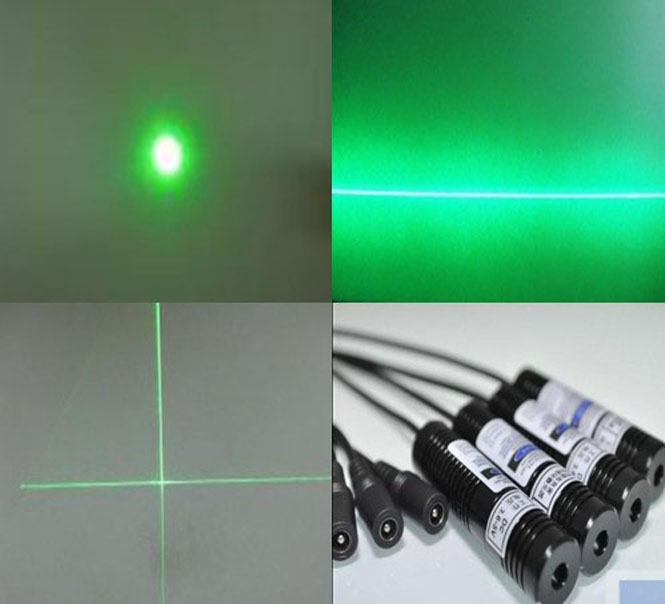

520nm-532nm Green Laser Modules
Product name : 520nm-532nm Green Laser Modules
No. :
 Enlarge Image             Back
order

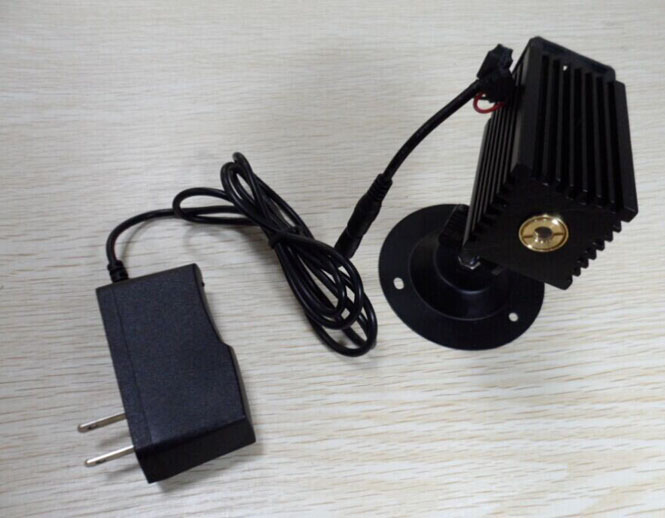

DM532D5Green dot laser module

Characteriscics

High-quality laser diode,optical glass lens, driver circuit and housing

High reliability, high stability, long life,low price

Applications:

Industrial marking devices, laser medical equipment, stage lighting and laser targeting devices and so on..

Specifications
Wavelength520nm

Output power1-200mW

Laser classIIIIIaIIIb
Beam Divergence
0.1mrad ~ 0.6mrad
Operating Voltage
DC3V-5V,DC3V

Operating Temperature1035

Storage Temperature-2050

DimensionsΦ16mm ×60mm,Φ16mm ×80mm,33*33*55mm

MTTF8000 hours

Warranty6 months
