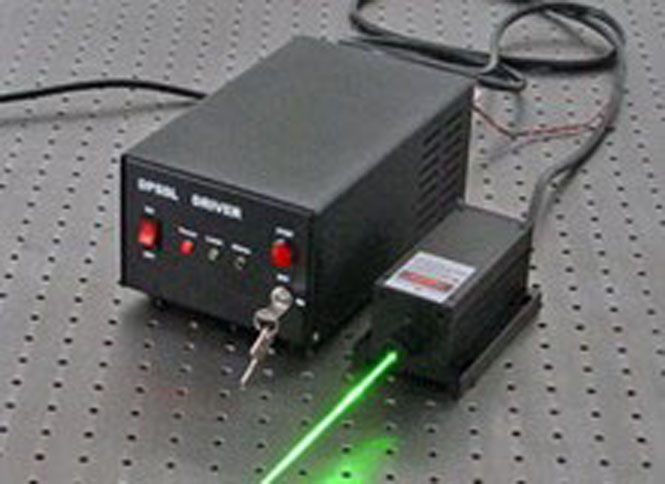

532nm 10W DPSS Green Laser Modules
Product name : 532nm 10W DPSS Green Laser Modules
No. :
 Enlarge Image             Back
order





DT532D10W:



Characteristics

High power and high stability

Good beam shape

Long lifetime

Low cost and easy operating



Applications

Solid state 532nm laser are used in holography, spectrum analysis, interference, measurements, laser printing, chip inspection, physics experiments, laser TV,laser display etc.



Specifications

Model

DT532D10W

Wavelength

532nm

Operating mode

CW

Output power

10W

Spatial mode

Near TEM00

Longitudinal mode

Multi

Spectral linewidth

0.1nm

Coherence length

1-5m

Polarization

Linear vertical

Polarization ratio

>100:1

Beam quality

M2<3

Beam divergence full angle

2mrad

Beam diameter at aperture

4mm

Beam ellipticity

1±0.1

Beam pointing stability

0.03mrad

Noise

<0.5% 10Hz-50MHz

Power stability

±1, 3, 5% over 8 hrs rms

Optical axis height

93.5mm

Size of laser head

L×W×H=333×140×125mm

Size of power supply

L×W×H=300×1162×134mm

Cabel-laser head

1.0, 1.5m

Weight of laser head

6.1kg

Weight of power supply

5.2kg

TTL modulation

0V-no lasing, 5V-lasing

Frequency of TTL

1kHz-30kHz

Efficiency of TTL

40%-60%

Analogue modulation

0-5V

Frequency of analogue

1kHz-20kHz

Cooling mode

TEC

Operating votage

90-260VAC

Maximum power consumption

80W

Warm-up time

15 mintues

Operating temperature

10-35

Storage temperature

-20-60(<90% relative humidity, non-condensing)

Expected life time

10,000 hours

Warranty time

1 year
