Characteriscics：

High-quality laser diode,optical glass lens, driver circuit and housing

High reliability, high stability, long life,low price

Applications:

Industrial marking devices, laser medical equipment, stage lighting and laser targeting devices

and so on..

Specifications：

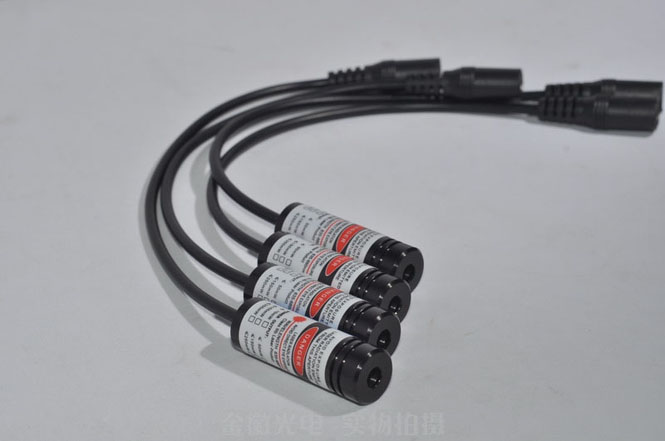

Model No.: DM650D1-D650D250
Wavelength：650nm
Output power：1mW ~ 250mW

Laser class：I - IV_Power: 1mw,5mW,10mW,20mW,50Mw,100mW,150mW,200mW,250mW

Beam Shape: Dot / line/ cross

Operating Current: <22mA～1A

Operating Voltage:DC3V~24V

Beam Divergence：0.1mrad ~ 2mrad

Fan Angle: 10°,30°,45°,60°,90°,110°,135°(bigger angle, longer line)

Operating temperature：-10～70 ℃

Storage temperature：-20～80 ℃

Dimensions of the module housing:

Φ3.8*10mm, Φ6.5*11mm, Φ9*22mm, Φ12*30mm, Φ12*45mm, Φ14*45mm, Φ16*65mm or customized size

Focus: fixed / adjustable

material of module housing : cooper / aluminum

Span of Life: 8000-10000hours

Spot diamension: 0.5mm (thinnest)

We also can make other laser modules, wavelength:405nm,445nm,450nm,635nm,648nm,650nm,658nm,660nm,670nm,532nm,780nm,808nm,810nm,830nm,850nm,940nm,980nm,1064nm

We also can make high power laser module ,from 500mw to 10W . We can custom-made according to your requirements .
