Adjustable Focus Red Line Laser Modules
Product name : Adjustable Focus Red Line Laser Modules
No. :
 Enlarge Image             Back

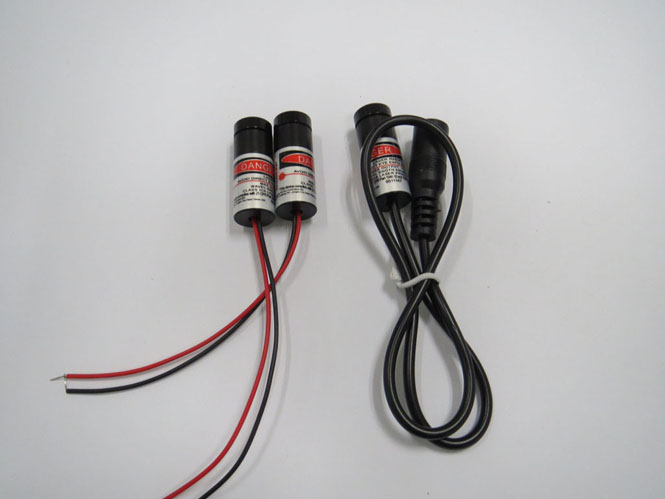

Adjustable focus red line laser module

Conventional line lasers are adjusted in focus by rotating the line optics and inserting an focusing tool into the laser to adjust the position the collimating lens. This process make line rotating and also can result in the laser changing power classification. The unique focusing mechanism of our products allows the focus to be adjusted without the need for removing line optics by simply rotating the white ring of the laser. This novel design produces improved line quality whilst maintaining accurate alignment.

Line lengths from a few mm to several metres are available from a variety of standard optics, with custom optics to suit specialised requirements.


Adjustable focus

High-quality laser diode,optical glass lens, driver circuit and housing

Better line quality

High reliability, high stability, long life,low price


Machine vision
Industrial inspection

Industrial marking devices

3D contour mapping
Positioning & visualization
High-end alignment

Laser targeting devices and so on..


Output power1-100mW

Laser classIIIIIaIIIb
Beam divergence
0.1mrad ~ 0.6mrad

Line thickness: Less then 2mm at 5m

Fan angle10°135°

Laser line accuracy<30”(at 5m)
Operating Voltage
DC3V-6VAC/DC 8-24V(Φ16mm ×120mm)

Operating Temperature-1070

Storage Temperature-3080

DimensionsΦ16mm ×120mmΦ16mm ×60mm

MTTF8000 hours

Warranty1 year
