1064nm 2W CMOUNT Laser Diodes

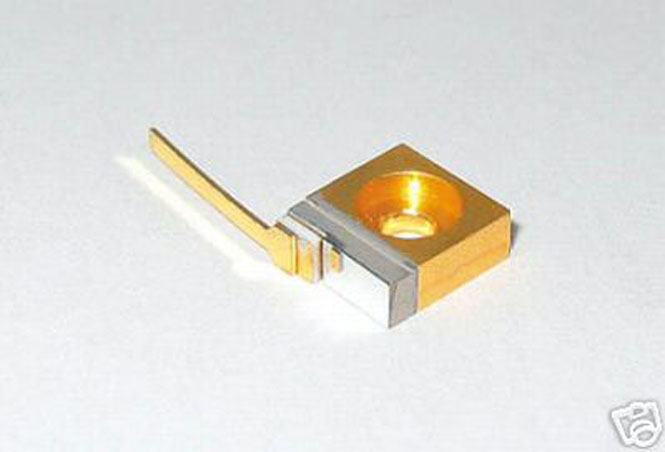

 Product name : 1064nm 2W CMOUNT Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-1064-3W-CMOUNT
    Min    Type    Max
 Center Wavelength@25℃   +/-5nm 1064nm   +/-10nm
 Spectral Width (FWHM)    ----   3.5nm    ----
 Output Power    ----  3W  ----
 Emitter  Area   100x1um
 Beam Divergence (FWHM)    ----    32°┴ x 8°//    42°┴ x 10°//
 Temperature Coefficient of Wavelength    ----   0.3nm / °C    ----
 Slope Efficiency    ----   1.0mW/mA    ----
 Threshold Current (Typ.)    ----   350mA    ----
 Operating Current (Typ.)    ----  3.5A   ----
 Operating Voltage    ----   1.9V    ----
 Package Style   CMOUNT
