1450nm 500mw CMOUNT Laser Diodes

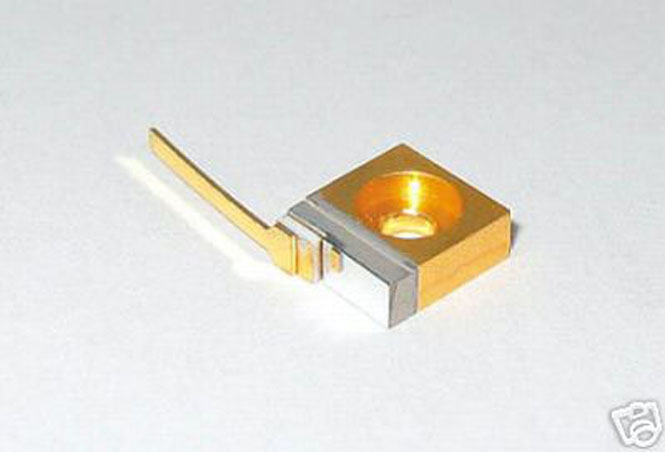

 Product name : 1450nm 500mw CMOUNT Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-1450-500mW-CMOUNT
    Min    Type    Max
 Center Wavelength@25℃   +/-10nm 1450nm   +/-20nm
 Spectral Width (FWHM)    ----   ----   3.0nm
 Output Power    ----   500mw    ----
 Emitter Area      100x1μm
 Beam Divergence (FWHM)    ----    40°┴ x 10°//    42°┴ x 12°//
 Temperature Coefficient of Wavelength    ----   0.3nm / °C    ----
 Slope Efficiency    ----   0.3mW/mA    ----
 Threshold Current (Typ.)    ----  60mA   85mA
 Operating Current (Typ.)    ----  2.5A  2.9A
 Operating Voltage    ----   1.3V    1.5V
 Package Style    CMOUNT
