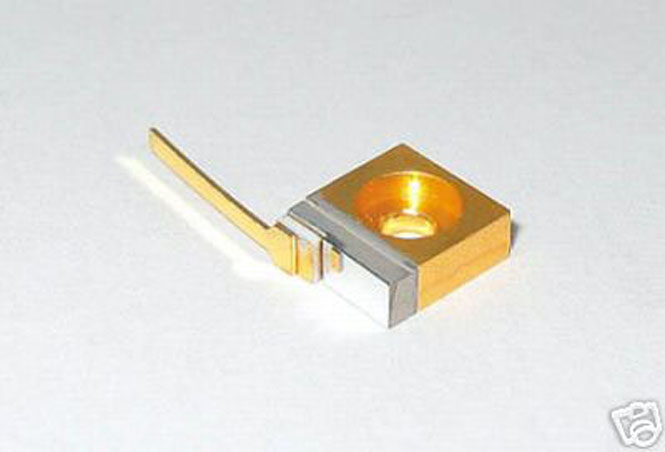

635nm 500mw CMOUNT Laser Diodes
Product name : 635nm 500mw CMOUNT Laser Diodes
No. :
 Enlarge Image             Back
order

DA-LD-635-500mW-CMOUNT









  Min

 Type

 Max

 Center Wavelength@25

 630nm

  635nm

 642nm

 Spectral Width (FWHM)



 1nm

 2.5nm

 Output Power



 500mW



 Emitter Area



 100x1μm



 Beam Divergence (FWHM)





 40°┴ x 10°//

 Temperature Coefficient of Wavelength



 0.25nm / °C



 Slope Efficiency

 0.80W/A

 0.95W/A



 Threshold Current (Typ.)



 0.75A

 0.85A

 Operating Current (Typ.)



  1.20A

 1.35A

 Operating Voltage



 2.2V

 2.3V

 Package Style

 C-mount
