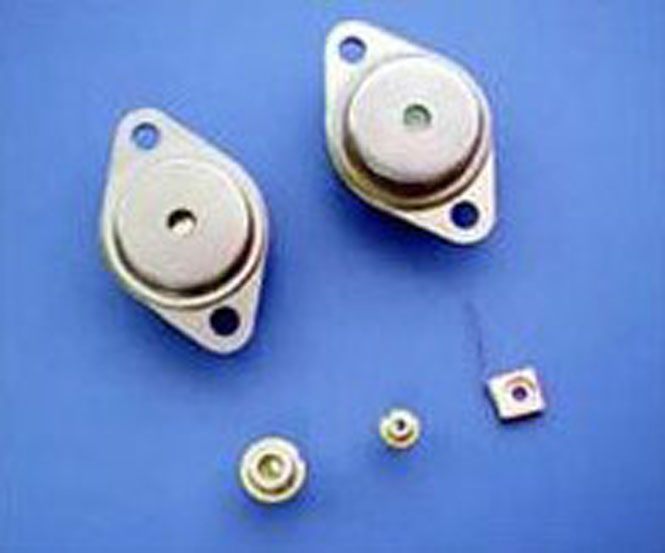

650nm 1W TO3 Laser Diodes
Product name : 650nm 1W TO3 Laser Diodes
No. :
 Enlarge Image             Back
order

DA-LD-650-1W-TO3









  Min

 Type

 Max

 Center Wavelength@25

 640nm

  650nm

 660nm

 Spectral Width (FWHM)



 1nm

 2.5nm

 Output Power



 1W



 Emitter Area



 100x1μm



 Beam Divergence (FWHM)





 40°┴ x 10°//

 Temperature Coefficient of Wavelength



 0.25nm / °C



 Slope Efficiency

 0.85W/A

 0.90W/A



 Threshold Current (Typ.)



 1.00A

 1.10A

 Operating Current (Typ.)



  1.80A

 1.9A

 Operating Voltage



 2.3V

 2.4V

 Package Style

 TO3
