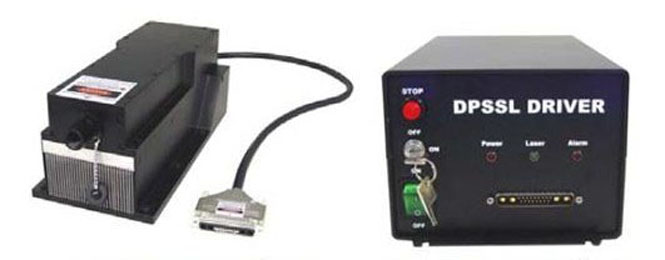

1064nm infrared laser are selected high-quality imported laser pumping source, non-linear crystal and collimating lens group, accompanied by high-performance temperature-driven power supply, with active temperature control, high stability, high reliability , high beam quality, high-frequency modulation, low noise, strong anti-interference, consistency is good, long life and so on.
Products are widely used in various laboratory equipment, military equipment and apparatus and equipment, pump source, laser medical devices.
|
Model
|
DT1064D2
|
|
Wavelength
|
1064nm
|
|
Operating mode
|
CW
|
|
Output power
|
1W -2W
|
|
Spatial mode
|
Near TEM00
|
|
Longitudinal mode
|
Multi
|
|
Spectral linewidth
|
0.1nm
|
|
Coherence length
|
1-5m
|
|
Polarization
|
Linear vertical
|
|
Polarization ratio
|
>100:1
|
|
Beam quality
|
M2<1.5
|
|
Beam divergence full angle
|
2mrad
|
|
Beam diameter at aperture
|
3mm
|
|
Beam ellipticity
|
1±0.1
|
|
Beam pointing stability
|
0.03mrad
|
|
Noise
|
<0.5% 10Hz-50MHz
|
|
Power stability
|
±1, 3, 5% over 8 hrs rms
|
|
Optical axis height
|
20.6mm
|
|
Size of laser head
|
L×W×H=184×60×62mm
|
|
Size of power supply
|
L×W×H=162×155×83mm
|
|
Cabel-laser head
|
1.0, 1.5m
|
|
Weight of laser head
|
1.2kg
|
|
Weight of power supply
|
0.8kg
|
|
TTL modulation
|
0V-no lasing, 5V-lasing
|
|
Frequency of TTL
|
1kHz-30kHz
|
|
Efficiency of TTL
|
40%-60%
|
|
Analogue modulation
|
0-5V
|
|
Frequency of analogue
|
1kHz-20kHz
|
|
Cooling mode
|
TEC
|
|
Operating votage
|
90-260VAC
|
|
Maximum power consumption
|
60W
|
|
Warm-up time
|
15 mintues
|
|
Operating temperature
|
10-35℃
|
|
Storage temperature
|
-20-60℃(<90% relative humidity, non-condensing)
|
|
Expected life time
|
10,000 hours
|
|
Warranty time
|
1 year
|
|
