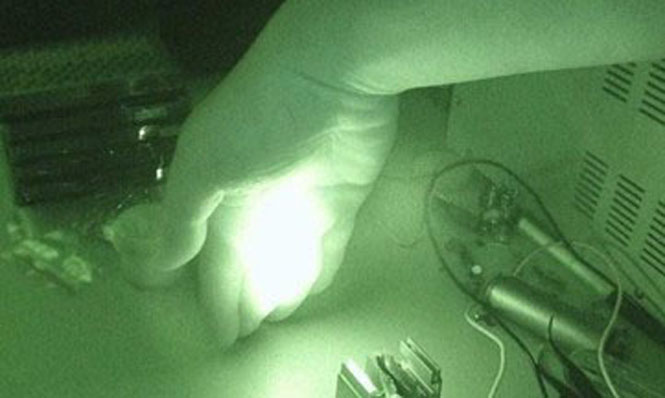

780nm Infrared Laser Diode Modules
Product name : 780nm Infrared Laser Diode Modules
No. :
 Enlarge Image             Back

Specifications of 780nm Infrared Laser Module



High-quality laser diode,optical glass lens, driver circuit and housing

High reliability, high stability, long life,low price



Industrial marking devices, laser medical equipment, stage lighting and laser targeting devices

and so on..



Model No.: DM780D100-DM780D500
Output power
100mW ~ 500mW

Beam Shape: Dot / line/ cross

Operating Current: <360mA

Operating Voltage:DC2V

Beam Divergence0.1mrad ~ 2mrad

Fan Angle: 10°,30°,45°,60°,90°,110°,135°(bigger angle, longer line)

Operating temperature-1070

Storage temperature-2080

Dimensions of the module housing:

Φ12*45mm, Φ12*60mm, customized size

Focus: fixed / adjustable

material of module housing : cooper / aluminum

Span of Life: 8000-10000hours

Spot diamension: 0.5mm (thinnest)


We also can make other laser modules, wavelength:405nm,445nm,450nm,635nm,648nm,650nm,658nm,660nm,670nm,532nm,780nm,808nm,810nm,830nm,850nm,940nm,980nm,1064nm

We also can make high power laser module ,from 500mw to 10W . We can custom-made according to your requirements .
