405nm Violet Laser Diode Modules

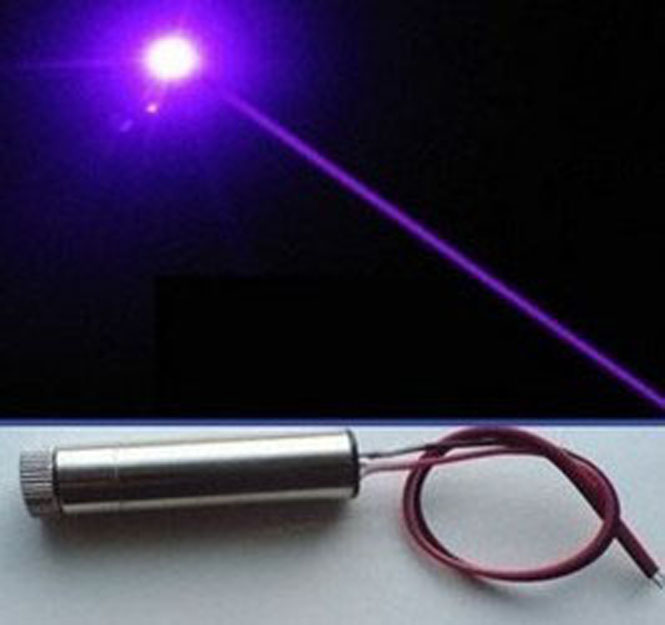

Product name : 405nm Violet Laser Diode Modules
No. :
 Enlarge Image             Back
order

Specifications of 405nm violet laser module



Characteristics

High-quality laser diode,optical glass lens, driver circuit and housing

High reliability, high stability, long life,low price



Applications:

Industrial marking devices, laser medical equipment, stage lighting and laser targeting devices

and so on..



Specifications

Model No.: DM405D5-DM405C250
Wavelength
405nm
Output power
5mW ~ 250mW

Laser classII – IV

Power: 5 mW,10mW,20mW,50Mw,100mW,150mW,200mW,250mW

Beam Shape: Dot / line/ cross

Operating Current: <260mA

Operating Voltage:DC5.5V~6V

Beam Divergence0.1mrad ~ 2mrad

Fan Angle: 10°,30°,45°,60°,90°,110°,135°(bigger angle, longer line)

Operating temperature-1070

Storage temperature-2080

Dimensions of the module housing:

Φ12*36mm, Φ12*40mmΦ,Φ14*45mm, Φ16*65mm or customized size

Focus: fixed / adjustable

material of module housing : cooper / aluminum

Span of Life: 8000-10000hours

Spot diamension: 0.5mm (thinnest)



We also can make other laser modules, wavelength:405nm,445nm,450nm,635nm,648nm,650nm,658nm,660nm,670nm,532nm,780nm,808nm,810nm,830nm,850nm,940nm,980nm,1064nm

We also can make high power laser module ,from 500mw to 10W . We can custom-made according to your requirements .
