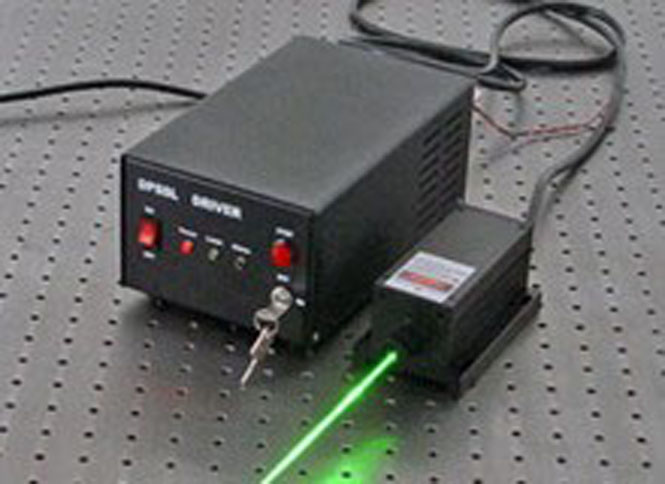

DT532D1W:
Characteristics：
High power and high stability
Good beam shape
Long lifetime
Low cost and easy operating
Applications：
Solid state 532nm laser are used in holography, spectrum analysis, interference, measurements, laser printing, chip inspection, physics experiments, laser TV,laser display etc.
Specifications：
|
Model
|
DT532D1W
|
|
Wavelength
|
532nm
|
|
Operating mode
|
CW
|
|
Output power
|
＞1W
|
|
Spatial mode
|
Near TEM00
|
|
Longitudinal mode
|
Multi
|
|
Spectral linewidth
|
0.1nm
|
|
Coherence length
|
1-5m
|
|
Polarization
|
Linear vertical
|
|
Polarization ratio
|
>100:1
|
|
Beam quality
|
M2<2
|
|
Beam divergence full angle
|
2mrad
|
|
Beam diameter at aperture
|
3mm
|
|
Beam ellipticity
|
1±0.1
|
|
Beam pointing stability
|
0.03mrad
|
|
Noise
|
<0.5% 10Hz-50MHz
|
|
Power stability
|
±1, 3, 5% over 8 hrs rms
|
|
Optical axis height
|
29mm
|
|
Size of laser head
|
L×W×H=155×77×60mm
|
|
Size of power supply
|
L×W×H=238×146×94mm
|
|
Cabel-laser head
|
1.0, 1.5m
|
|
Weight of laser head
|
0.9kg
|
|
Weight of power supply
|
2.2kg
|
|
TTL modulation
|
0V-no lasing, 5V-lasing
|
|
Frequency of TTL
|
1kHz-30kHz
|
|
Efficiency of TTL
|
40%-60%
|
|
Analogue modulation
|
0-5V
|
|
Frequency of analogue
|
1kHz-20kHz
|
|
Cooling mode
|
TEC
|
|
Operating votage
|
90-260VAC
|
|
Maximum power consumption
|
20W
|
|
Warm-up time
|
15 mintues
|
|
Operating temperature
|
10-35℃
|
|
Storage temperature
|
-20-60℃(<90% relative humidity, non-condensing)
|
|
Expected life time
|
10,000 hours
|
|
Warranty time
|
1 year
|
