Products
1470nm 1W CMOUNT Laser Diodes

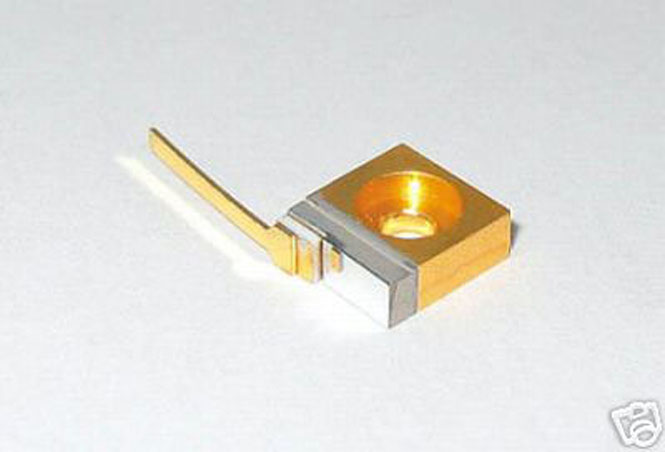

 Product name : 1470nm 1W CMOUNT Laser Diodes
No. :
 Enlarge Image             Back
order


DA-LD-1470-1W-CMOUNT
    Min    Type    Max
 Center Wavelength@25℃   +/-10nm 1470nm   +/-20nm
 Spectral Width (FWHM)    ----   3.0nm    ----
 Output Power    ----  1W  ----
 Emitter Area      100x1μm
 Beam Divergence (FWHM)    ----    70°┴ x 10°//   ----
 Temperature Coefficient of Wavelength    ----   0.3nm / °C    ----
 Slope Efficiency    ----   0.3mW/mA    ----
 Threshold Current (Typ.)    ----  400mA    ----
 Operating Current (Typ.)    ----  3A  3.2A
 Operating Voltage    ----   1.2V    1.3V
 Package Style    CMOUNT
