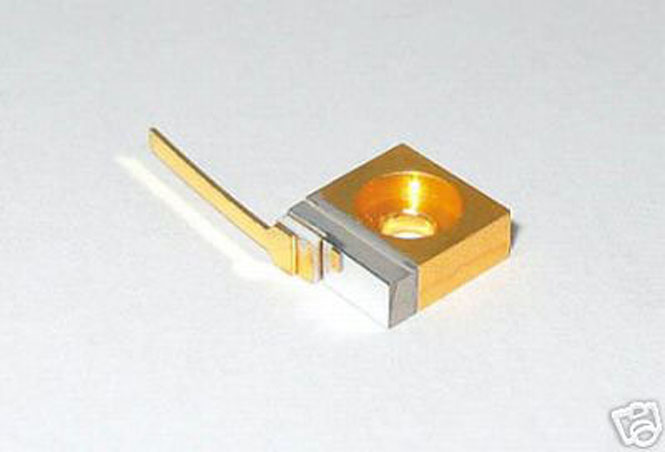

DA-LD-785-1W-CMOUNT

  Min

 Type

 Max

 Center Wavelength@25℃

 775nm

 785nm

 795nm

Spectral Width(FWHM)

2.0nm

 Output Power

 ----

 1W

1.2W

 Emitter Area

100x1um

 Beam Divergence (FWHM)

35°┴ x 7°//

40°┴ x 8°//

42°┴ x 11°//

Temperature Coefficient of Wavelength

0.28nm/°C

 Slope Efficiency

 0.9W/mA

1.0W/A

 1.2W/A

 Threshold Current (Typ.)

 ----

0.24A

0.26A

 Operating Current (Typ.)

 ----

1.2A

 1.4A

 Operating Voltage

 ----

 2.0V

 ----

 Package Style

CMOUNT
