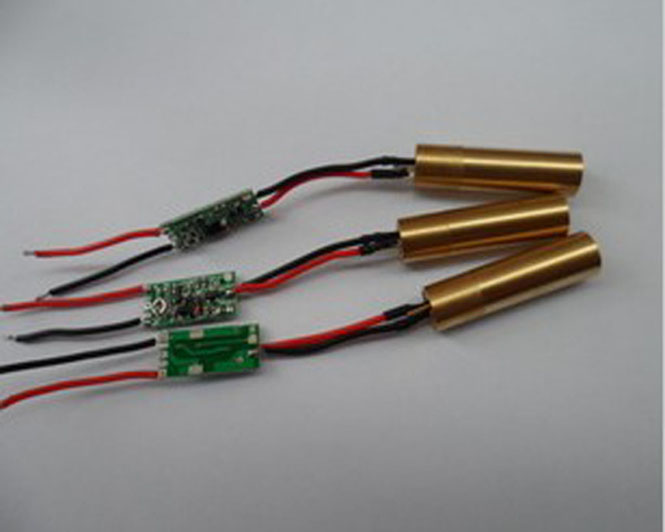

Specifications of Mini-size Green Laser Modules

Specifications：

Model No.: DM532D5-MN

Wavelength：532nm

Output power：≤5mW

Diameter： Φ5.8 * 10mm (not include PCB)

Φ6.5mm *21mm (not include PCB)

Φ8mm *15mm /25mm/ 31mm (not include PCB)

          Or custom-made size

Operating Voltage：DC3V；

Operating Current:≤260mA；

Operating Temperature：-5℃～+45℃；

Material of module housing: brass

We also can make other laser modules, wavelength:405nm,445nm,450nm,635nm,648nm,650nm,658nm,660nm,670nm,532nm, 780nm,808nm,810nm,830nm,850nm,940nm,980nm,1064nm

We also can make high power laser module ,from 500mw to 10W . We can custom-made according to your requirements .
